钛合金六角头全螺纹螺栓 QJ 2581 - 1993

选择规格尺寸 点击↓

M3

M4

M5

M6

M8

M10

M12 ×1.5

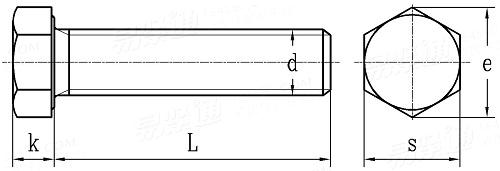

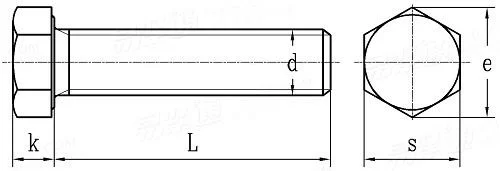

QJ  2581 - 1993 钛合金六角头全螺纹螺栓

尺寸单位: mm
航天QJ 2581 - 1993 QJ2581 2581QJ 钛合金六角头全螺纹螺栓
QJ  2581 - 1993 钛合金六角头全螺纹螺栓
扫一扫分享
千件重及价格计算 千件重 : kg x 元/kg = 元/千件
默认密度 g/cm3
公称长度L 注:选择后获得 相应重量
螺纹尺寸
d
M3 M4 M5 M6 M8 M10 M12
×1.5
e 最小值
k 公称
最大值
最小值
s 最大值
最小值
6.07 7.66 8.79 11.05 14.38 17.77 20.03
2 2.8 3.5 4 5.3 6.4 7.5
2.12 2.92 3.65 4.15 5.45 6.58 7.68
1.88 2.68 3.35 3.85 5.12 6.22 7.32
5.5 7 8 10 13 16 18
5.32 6.78 7.78 9.78 12.73 15.73 17.73
千件钢制重≈kg TB3螺栓
- - - - - - -
①,材料:TB3 —— 规格范围(M3~M12),热处理(不经热处理 σb≥800MPa),表面处理(蓝色-阳极氧化);规格范围(M5~M12),热处理(时效处理 σb≥1100MPa),表面处理(金黄色-阳极氧化)。
②,其他要求按 QJ 2585 的规定,检验规则按第6章的规定。
替代列表
注:技术数据仅供参考,请以官方原件为准!
