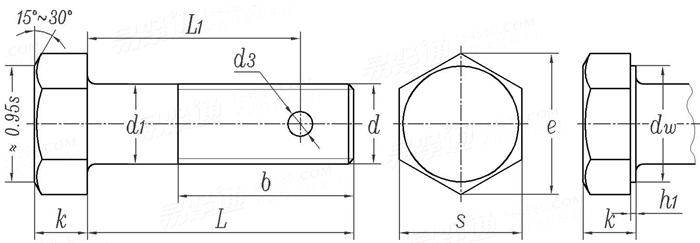

六角头杆头带孔螺栓 GOST 7798 (2) - 1970

选择规格尺寸点击↓

(14)

(18)

(22)

(27)

括号内尺寸为非优选

尺寸单位: mm

俄标GOST 7798 (2) - 1970 GOST7798 7798GOST 六角头杆头带孔螺栓

扫一扫分享

单重计算公差公制螺纹极限尺寸米/英制螺纹对照螺纹直径与受力截面积最小破坏扭矩牌号等级毛坯直径

螺纹尺寸
d

(14)

(18)

(22)

(27)

P	粗牙
	细牙
d₁
s
k
e	最小值
d_w	最小值
h₁	最小值
	最大值
d₃

1	1.25	1.5	1.75	2	2	2.5	2.5	2.5	3	3	3.5	4	4.5	5
/	1	1.25	1.25	1.5	1.5	1.5	1.5	1.5	2	2	2	3	3	3
6	8	10	12	14	16	18	20	22	24	27	30	36	42	48
10	13	16	18	21	24	27	30	34	36	41	46	55	65	75
4	5.3	6.4	7.5	8.8	10	12	12.5	14	15	17	18.7	22.5	26	30
10.9	14.2	17.6	19.9	22.8	26.2	29.6	33	37.3	39.6	45.2	50.9	60.8	71.3	82.6
8.7	11.5	14.5	16.5	19.2	22	24.8	27.7	31.4	33.2	38	42.7	51.1	59.9	69.4
0.15	0.15	0.15	0.15	0.15	0.2	0.2	0.2	0.2	0.2	0.2	0.2	0.2	0.25	0.25
0.6	0.6	0.6	0.6	0.6	0.8	0.8	0.8	0.8	0.8	0.8	0.8	0.8	0.8	0.8
1.6	2	2.5	3.2	3.2	4	4	4	5	5	5	6.3	6.3	8	8

L₁

螺纹长度b

引用参考

GB /T 1172 - 1999

黑色金属硬度及强度换算值

GB /T 5267.1 - 2002

镀锌、镀镍、镀镉、复合镀等层镀层盐雾腐蚀的防护性能

GB /T 193 - 2003

普通螺纹（一般用途米制螺纹）- 直径与螺距系列 (ISO 261: 1998, MOD)

GB /T 3106 - 2016

紧固件 - 螺栓、螺钉和螺柱 - 公称长度和螺纹长度 (ISO 888:2012, MOD)

GB /T 12603 - 2005

金属热处理工艺分类及代号

GB /T 3 - 1997

普通螺纹收尾、肩距、退刀槽和倒角 (ISO 3508:1976 / ISO 4755:1983)

GB /T 5779.1 - 2000

紧固件表面缺陷 - 螺栓、螺钉和螺柱 - 一般要求

GB /T 5779.3 - 2000

紧固件表面缺陷 - 螺栓、螺钉和螺柱 - 特殊要求
