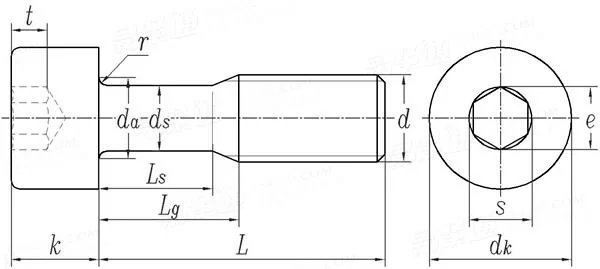

粗牙内六角圆柱头细杆螺钉 DIN 6929 (EE) - 2013

选择规格尺寸点击↓

M10

M12

M16

M20

M24

M30

尺寸单位: mm

德标DIN 6929 (EE) - 2013 DIN6929 6929DIN 粗牙内六角圆柱头细杆螺钉

扫一扫分享

公差公制螺纹极限尺寸米/英制螺纹对照螺纹直径与受力截面积最小破坏扭矩牌号等级毛坯直径

螺纹尺寸
d

M10

M12

M16

M20

M24

M30

P	螺距
L_g	K型	最大值
	L型	最大值
L_s	K型	最小值
	L型	最小值
d_a	最大值
d_s	最大值
	最小值
r	最小值
d_k	圆头	最大值
	滚花头	最大值
	最小值
k	最大值
	最小值
s	公称
	最大值
	最小值
t	最小值
e	最小值

0.5	0.7	0.8	1	1.25	1.5	1.75	2	2.5	3	3.5
5	6.8	8.2	10	13	16	19	24	30	37	44
11.5	15.5	18.8	23	26.5	32.5	41	50	58	69	85
4	5.4	6.6	8	10.5	13	15.5	20	25	31	37
10	13.4	16.4	20	22.5	28	35.5	44	50	60	74
3.6	4.7	5.7	6.8	9.2	11.2	13.7	17.7	22.4	26.4	33.4
2.3	3	3.9	4.6	6.2	7.7	9.2	12.7	16.2	19.2	24.2
2.1	2.8	3.7	4.4	6	7.5	9	12.5	16	19	24
0.1	0.2	0.2	0.25	0.4	0.4	0.6	0.6	0.8	0.8	1
5.5	7	8.5	10	13	16	18	24	30	36	45
5.68	7.22	8.72	10.22	13.27	16.27	18.27	24.33	30.33	36.39	45.39
5.32	6.78	8.28	9.78	12.73	15.73	17.73	23.67	29.67	35.61	44.61
3	4	5	6	8	10	12	16	20	24	30
2.86	3.82	4.82	5.7	7.64	9.64	11.57	15.57	19.48	23.48	29.48
2.5	3	4	5	6	8	10	14	17	19	22
2.58	3.08	4.095	5.14	6.14	8.175	10.175	14.212	17.23	19.275	22.275
2.52	3.02	4.02	5.02	6.02	8.025	10.025	14.032	17.05	19.065	22.065
1.3	2	2.5	3	4	5	6	8	10	12	15.5
