开槽盘头自攻螺钉【PT-K 螺纹】 YJT 4062 (WN1445C)

选择规格尺寸 点击↓

22

25

30

35

40

50

60

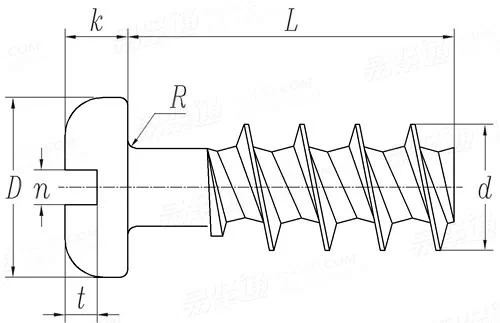

YJT 4062 (WN1445C) 开槽盘头自攻螺钉【PT-K 螺纹】

尺寸单位: mm
企标YJT 4062 (WN1445C) YJT4062 4062YJT 开槽盘头自攻螺钉【PT-K 螺纹】
YJT 4062 (WN1445C) 开槽盘头自攻螺钉【PT-K 螺纹】
扫一扫分享
单重计算 公差
千件重及价格计算 千件重 : kg x 元/kg = 元/千件
默认密度 g/cm3
×

选择材料对应密度(g/cm3)

  • 碳钢 7.85
  • 不锈钢 8.1
  • 不锈钢 7.95
  • 不锈钢 7.7
  • 钛合金 4.5
  • 铝合金 2.8
  • 铜 8.89


在此选择或在计算页输入材料密度 密度表
公称长度L 注:选择后获得 相应重量
螺纹规格
22 25 30 35 40 50 60
d
D
k 最小值
最大值
R
n
t 最小值
最大值
2.2 2.5 3 3.5 4 5 6
4.2 4.2 5.6 6 6.9 8.2 9.5
1.15 1.15 1.5 1.5 1.85 2.15 2.5
1.35 1.35 1.75 1.75 2.1 2.45 2.8
0.2 0.3 0.4 0.4 0.5 0.6 0.8
0.6 0.6 0.8 0.8 1 1.2 1.2
0.55 0.55 0.75 0.75 0.95 1.15 1.35
0.8 0.8 1 1 1.25 1.5 1.7
千件钢制重≈kg
- - - - - - -

引用参考

GB /T 3098.5 - 2016
紧固件机械性能 - 自攻螺钉
GB /T 1172 - 1999
黑色金属硬度及强度换算值
GB /T 5267.1 - 2002
镀锌、镀镍、镀镉、复合镀等层镀层盐雾腐蚀的防护性能
GB /T 193 - 2003
普通螺纹（一般用途米制螺纹）- 直径与螺距系列 (ISO 261: 1998, MOD)
GB /T 5280 - 2002
自攻螺钉用螺纹
注：技术数据仅供参考，请以官方原件为准！
