保险阀 QC /T 411 - 1999

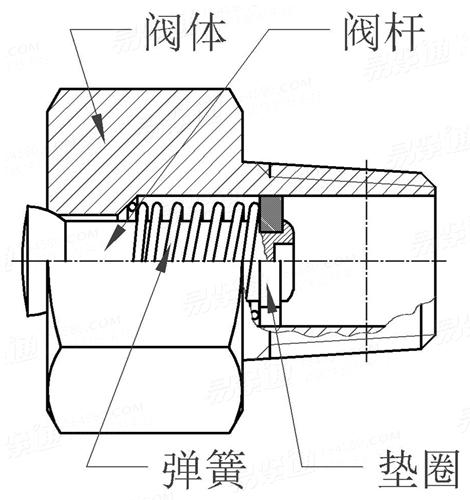

| ①,技术条件： 1. 螺纹按 ZB T04002规定。 2. 材料：阀体（Y15，YB191）；阀杆（Y15，YB191；35，GB 699）；弹簧（钢丝65Mn，直径0.6，GB 4357）；垫圈（08，GB 699；A3F，GB 700）。 3. 表面处理：阀体（镀锌钝化Zn8D，GB 5267）；阀杆（镀锌钝化DZn13，JB 2864）。 4. 保险阀的保险压力为35～45KPa。 5. 阀体孔Φ4与Φ6.6的同轴度公差不大于0.1mm。 6. 垫圈孔与外圆的同轴度公差不大于0.1mm。 7. 验收检查、标志与包装按GB 90规定，其中螺纹的合格质量水平AQL=1.5；其余项目AQL=4.0；保险压力的验收由供需双方商定 。 |
采用标准
注：技术数据仅供参考，请以官方原件为准！
