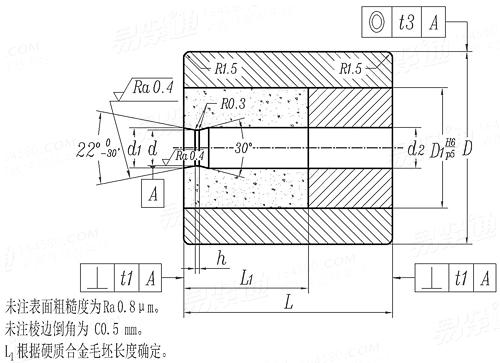

| d
|
最小值=公称 |
| 最大值 |
| d1
|
最小值=公称 |
| 最大值 |
| D
|
公称 |
| 最大值 |
| 最小值 |
| L
|
最大值=公称 |
| 最小值 |
| d2
|
比d实际尺寸增加值 |
| D1
|
| h
|
| t1
|
| t3
|
|
| 7.25 |
9.25 |
10.9 |
12.9 |
14.9 |
16.9 |
18.54 |
| 7.272 |
9.272 |
10.927 |
12.927 |
14.927 |
16.927 |
18.573 |
| 7.85 |
9.85 |
11.8 |
13.8 |
15.8 |
17.8 |
19.8 |
| 7.94 |
9.94 |
11.91 |
13.91 |
15.91 |
17.91 |
19.93 |
| 38 |
48 |
48 |
62 |
62 |
78 |
78 |
| 38.085 |
48.095 |
48.095 |
62.117 |
62.117 |
78.132 |
78.132 |
| 38.06 |
48.07 |
48.07 |
62.087 |
62.087 |
78.102 |
78.102 |
| 42 |
52 |
52 |
66 |
66 |
80 |
80 |
| 41.9 |
51.88 |
51.88 |
65.88 |
65.88 |
79.88 |
79.88 |
| 0.03~0.05 |
0.03~0.05 |
0.03~0.05 |
0.04~0.06 |
0.04~0.06 |
0.05~0.07 |
0.05~0.07 |
| 22 |
30 |
30 |
40 |
40 |
45 |
45 |
| 0.8 |
1 |
1.2 |
1.4 |
1.6 |
1.8 |
2 |
| 0.08 |
0.08 |
0.08 |
0.1 |
0.1 |
0.1 |
0.1 |
| 0.06 |
0.06 |
0.06 |
0.08 |
0.08 |
0.08 |
0.08 |
|
