薄硬材用非齐头压铆螺钉 Self-Clinching HFLH

选择规格尺寸 点击↓

10#

1/4

5/16

M5

M6

M8

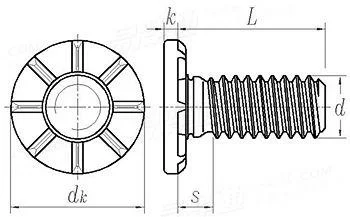

Self-Clinching  HFLH 薄硬材用非齐头压铆螺钉

尺寸单位: mm/inch
压铆件Self-Clinching HFLH Self-ClinchingHFL 薄硬材用非齐头压铆螺钉
Self-Clinching  HFLH 薄硬材用非齐头压铆螺钉
扫一扫分享
适用螺纹
10# 1/4 5/16 M5 M6 M8
P
PP
dk 公称
最大值
最小值
s 最大值
k 最大值
板厚 最小值
安装孔尺寸 最小值=公称
最大值
代号 硬化合金钢
/ / / 0.8 1 1.25
32 20 18 / / /
0.357 0.462 0.586 9.6 11.35 15.3
0.367 0.472 0.596 9.85 11.6 15.55
0.347 0.452 0.576 9.35 11.1 15.05
0.102 0.118 0.133 2.6 2.8 3.3
0.048 0.060 0.083 1.35 1.52 2.13
0.040 0.040 0.060 1 1 1.5
0.190 0.250 0.312 5 6 8
0.195 0.255 0.317 5.13 6.13 8.13
HFLH HFLH HFLH HFLH HFLH HFLH
注:技术数据仅供参考,请以官方原件为准!
