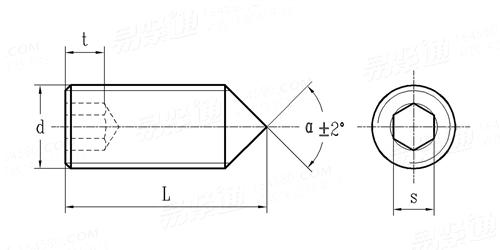

统一螺纹内六角锥端紧定螺钉 Table 6A BS 2470 - 1973

选择规格尺寸 点击↓

0#

1#

2#

3#

4#

5#

6#

8#

10#

1/4

5/16

3/8

7/16

1/2

5/8

3/4

7/8

1

BS  2470 - 1973 统一螺纹内六角锥端紧定螺钉  Table 6A

尺寸单位: 英寸(inch)
英标BS 2470 - 1973 BS2470 2470BS 统一螺纹内六角锥端紧定螺钉  Table 6A
BS  2470 - 1973 统一螺纹内六角锥端紧定螺钉  Table 6A
扫一扫分享
螺纹规格
d
0# 1# 2# 3# 4# 5# 6# 8# 10#
PP UNC
UNF
s 公称
t 最小值
a
- 64 56 48 40 40 32 32 24
80 72 64 56 48 44 40 36 32
0.028 0.035 0.035 0.050 0.050 1/16 1/16 5/64 3/32
0.022 0.028 0.028 0.040 0.040 0.050 0.050 0.062 0.075
5/64 3/32 7/64 1/8 5/32 3/16 3/16 1/4 1/4
螺纹规格
d
1/4 5/16 3/8 7/16 1/2 5/8 3/4 7/8 1
PP UNC
UNF
s 公称
t 最小值
a
20 18 16 14 13 11 10 9 8
28 24 24 20 20 18 16 14 12
1/8 5/32 3/16 7/32 1/4 5/16 3/8 1/2 9/16
0.100 0.125 0.150 0.175 0.200 0.250 0.300 0.400 0.450
5/16 3/8 7/16 1/2 9/16 3/4 7/8 1 1-1/8
①,当螺钉长度 ≥表中数值时,锥端角度α:90°±2°;
当螺钉长度 < 表中数值时,锥端角度α:118°±2°。
注:技术数据仅供参考,请以官方原件为准!
