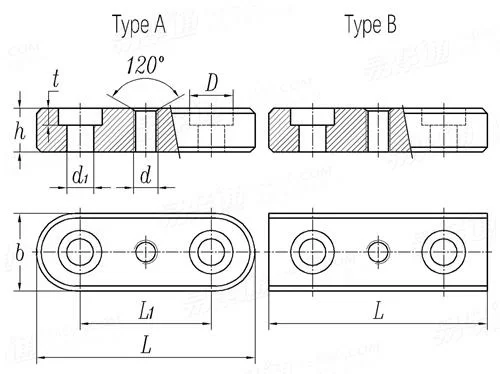

导向型平键 GB 1097 - 1979

选择规格尺寸点击↓

尺寸单位: mm

模型下载替

扫一扫分享

公差

千件重及价格计算千件重 : kg x 元/kg = 元/千件

默认密度 g/cm³

基本尺寸
b

b	h9	最大值
		最小值
h	h11	最大值
		最小值
t
d
d₁
D
对A型应减去的重量(kg≈)

8	10	12	14	16	18	20	22	25	28	32	36	40	45
7.964	9.964	11.964	13.957	15.957	17.957	19.957	21.948	24.948	27.948	31.948	35.938	39.938	44.938
7	8	8	9	10	11	12	14	14	16	18	20	22	25
6.91	7.91	7.91	8.91	9.91	10.89	11.89	13.89	13.89	15.89	17.89	19.87	21.87	24.87
2.4	2.4	3	3.5	3.5	4.5	4.5	4.5	6	6	7	8	8	8
M3	M3	M4	M5	M5	M6	M6	M6	M8	M8	M10	M10	M10	M10
3.4	3.4	4.5	5.5	5.5	6.6	6.6	6.6	9	9	11	11	11	11
6	6	8.5	10	10	12	12	12	15	18	18	18	18	18
0.76	1.4	2	3	4.3	6	8	11	15	21	31	44	59	85

千件钢制重≈kg

替代列表

GB 1097 - 1979 GB /T 1097 - 2003

工艺相关

技术条件和引用标准

技术条件

①键槽尺寸应符合 GB 1095-79《平键键和键槽的剖面尺寸》的规定。
②导向平键的技术条件应符合GB 1568-79《键技术条件》的规定。
③当键长大于450mm时，其长度应按GB 321-80《优先数和优先数系》的R20系列选取。
④固定用螺钉应符合GB 822-86《十字槽圆柱头螺钉》或GB 65-85《开槽圆柱头螺钉》的规定。

引用参考

GB /T 1172

黑色金属硬度及强度换算值

GB /T 5267.1 - 2002

镀锌、镀镍、镀镉、复合镀等层镀层盐雾腐蚀的防护性能

GB /T 193 - 2003

普通螺纹（一般用途米制螺纹）- 直径与螺距系列 (ISO 261: 1998, MOD)

注：技术数据仅供参考，请以官方原件为准！
