内六角圆柱头螺钉 JIS B 1176 - 2006

选择规格尺寸点击↓

M1.6

M2.5

M10

M12

(M14)

M16

M20

M24

M30

M36

M42

M48

M56

M64

括号内尺寸为非优选

尺寸单位: mm

日标JIS B1176 - 2006 JIS1176 1176JIS 内六角圆柱头螺钉

扫一扫分享

单重计算公差公制螺纹极限尺寸米/英制螺纹对照螺纹直径与受力截面积最小破坏扭矩牌号等级毛坯直径

千件重及价格计算千件重 : kg x 元/kg = 元/千件

默认密度 g/cm³

螺纹尺寸

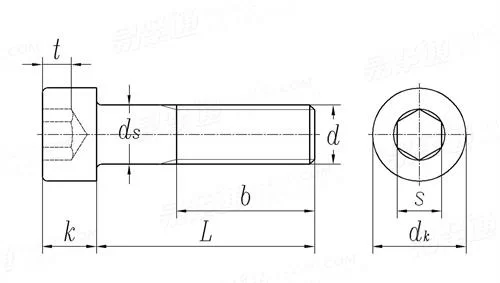

d

M1.6

M2.5

M10

M12

P	螺距	粗牙
		细牙 -1
		细牙 -2
b	参考
d_k	最大值	平头
		滚花头
	最小值
d_s	最大值
	最小值
k	最大值
	最小值
s	公称
	最大值
	最小值
t	最小值

0.35	0.4	0.45	0.5	0.7	0.8	1	1.25	1.5	1.75
-	-	-	-	-	-	-	1	1	1.5
-	-	-	-	-	-	-	-	(1.25)	(1.25)
15	16	17	18	20	22	24	28	32	36
3	3.8	4.5	5.5	7	8.5	10	13	16	18
3.14	3.98	4.68	5.68	7.22	8.72	10.22	13.27	16.27	18.27
2.86	3.62	4.32	5.32	6.78	8.28	9.78	12.73	15.73	17.73
1.6	2	2.5	3	4	5	6	8	10	12
1.46	1.86	2.36	2.86	3.82	4.82	5.82	7.78	9.78	11.73
1.6	2	2.5	3	4	5	6	8	10	12
1.46	1.86	2.36	2.86	3.82	4.82	5.7	7.64	9.64	11.57
1.5	1.5	2	2.5	3	4	5	6	8	10
1.58	1.58	2.08	2.58	3.08	4.095	5.14	6.14	8.175	10.175
1.52	1.52	2.02	2.52	3.02	4.02	5.02	6.02	8.025	10.025
0.7	1	1.1	1.3	2	2.5	3	4	5	6

千件钢制重≈kg

螺纹尺寸
d

(M14)

M16

M20

M24

M30

M36

M42

M48

M56

M64

P	螺距	粗牙
		细牙 -1
		细牙 -2
b	参考
d_k	最大值	平头
		滚花头
	最小值
d_s	最大值
	最小值
k	最大值
	最小值
s	公称
	最大值
	最小值
t	最小值

2	2	2.5	3	3.5	4	4.5	5	5.5	6
-	1.5	1.5	2	2	3	3	3	4	4
(1.5)	-	(2)	-	-	-	-	-	-	-
40	44	52	60	72	84	96	108	124	140
21	24	30	36	45	54	63	72	84	96
21.33	24.33	30.33	36.39	45.39	54.46	63.46	72.46	84.54	96.54
20.67	23.67	29.67	35.61	44.61	53.54	62.54	71.54	83.46	95.46
14	16	20	24	30	36	42	48	56	64
13.73	15.73	19.67	23.67	29.67	35.61	41.61	47.61	55.54	63.54
14	16	20	24	30	36	42	48	56	64
13.57	15.57	19.48	23.48	29.48	35.38	41.38	47.38	55.26	63.26
12	14	17	19	22	27	32	36	41	46
12.212	14.212	17.23	19.275	22.275	27.275	32.33	36.33	41.33	46.33
12.032	14.032	17.05	19.065	22.065	27.065	32.08	36.08	41.08	46.08
7	8	10	12	15.5	19	24	28	34	38

千件钢制重≈kg

替代列表

JIS B 1176 - 1988 JIS B 1176 - 2006 JIS B 1176 - 2014

引用参考

GB /T 1172 - 1999

黑色金属硬度及强度换算值

GB /T 5267.1 - 2002

镀锌、镀镍、镀镉、复合镀等层镀层盐雾腐蚀的防护性能

GB /T 193 - 2003

普通螺纹（一般用途米制螺纹）- 直径与螺距系列 (ISO 261: 1998, MOD)

GB /T 3106 - 2016

紧固件 - 螺栓、螺钉和螺柱 - 公称长度和螺纹长度 (ISO 888:2012, MOD)

GB /T 3 - 1997

普通螺纹收尾、肩距、退刀槽和倒角 (ISO 3508:1976 / ISO 4755:1983)

GB /T 5779.1 - 2000

紧固件表面缺陷 - 螺栓、螺钉和螺柱 - 一般要求

GB /T 5779.3 - 2000

紧固件表面缺陷 - 螺栓、螺钉和螺柱 - 特殊要求

注：技术数据仅供参考，请以官方原件为准！
